Wi-POD-3 - Triple Loadcell Corner Weight Scale System

Price: £POA

Description

EEC Performance Systems Engineers have consulted with experienced race engineers to provide an intelligent wireless corner weight scale system second to none.

The Wi-POD 3 features a triple loadcell configuration resulting in minimal deflection errors demanded by decerning Race Engineers.

The Wi-POD can run multiple car setups, recording a data history which is available to view instantly on screen and to download via USB for further analysis and record keeping.

The Wi-POD employs the highest quality weighing and wireless components, ensuring greater accuracy over a longer range to its competitors. Each corner has a maximum capacity of 1000kg to an accuracy of 200g. Our unique Automatic Track Compensation (ATC) system ensures the Wi-POD weighs your vehicle accurately at any circuit in the world without the need for local recalibration.

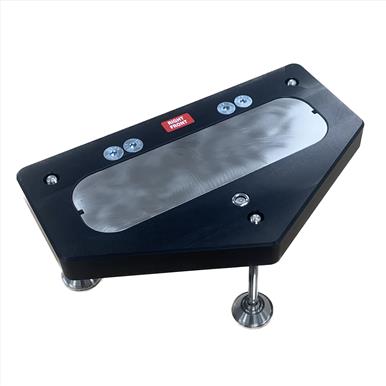

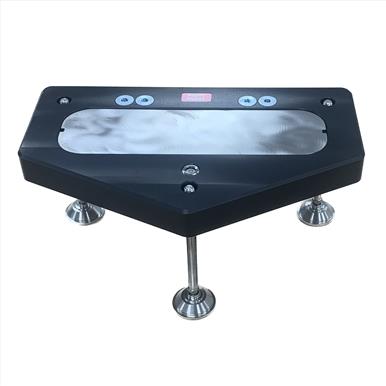

Each corner scale is machined from a solid billet of 6061 grade aluminium with an anodised finish. The 150mm long adjustable stainless steel feet run directly into the Loadcells. Power is from 2 x AAA drycell batteries per corner.

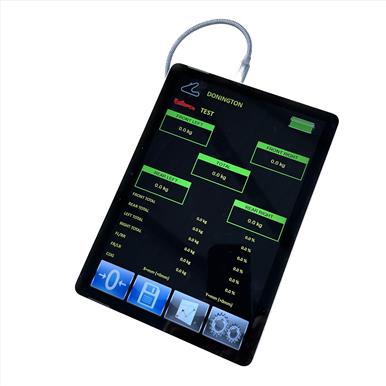

The Wi-POD is supplied with a Microsoft based tablet PC with software and license loaded and a USB style radio receiver.

Alternatively, the Wi-POD software can be loaded onto most Windows 10 or later devices by purchasing a single use license and USB style radio receiver.

Available options include a custom flightcase to store and transport the Wi-POD system.

The Wi-POD is both UKCA & CE approved.

Specifications

1000kg x 200g Capacity Per Corner

6061 Billet Aluminium Construction

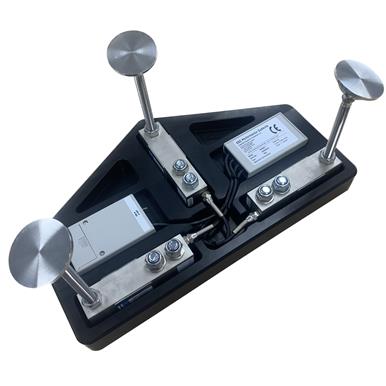

Triple Loadcell Per Corner

5mm Thick 316 Stainless Load Plates

Heavy Duty Adjustable Stainless Steel Feet

Tough Anodised Finish

Integral Bubble Spirit Level

Onscreen Set Up Memory

Downloadable / Printable Reports



Options

Flightcase
