E-POD Endurance Rig Scales
Price: £POA
Description
Innovation
EEC Performance Systems identified the need for a purpose built Fuel Rig Scale, designed as an alternative to the ‘adapted parcel scales’ currently available from some rig manufacturers.
With it’s 35 years experience in the weighing machine industry, EEC designed a scale specifically for the job, choosing the most suitable components available.

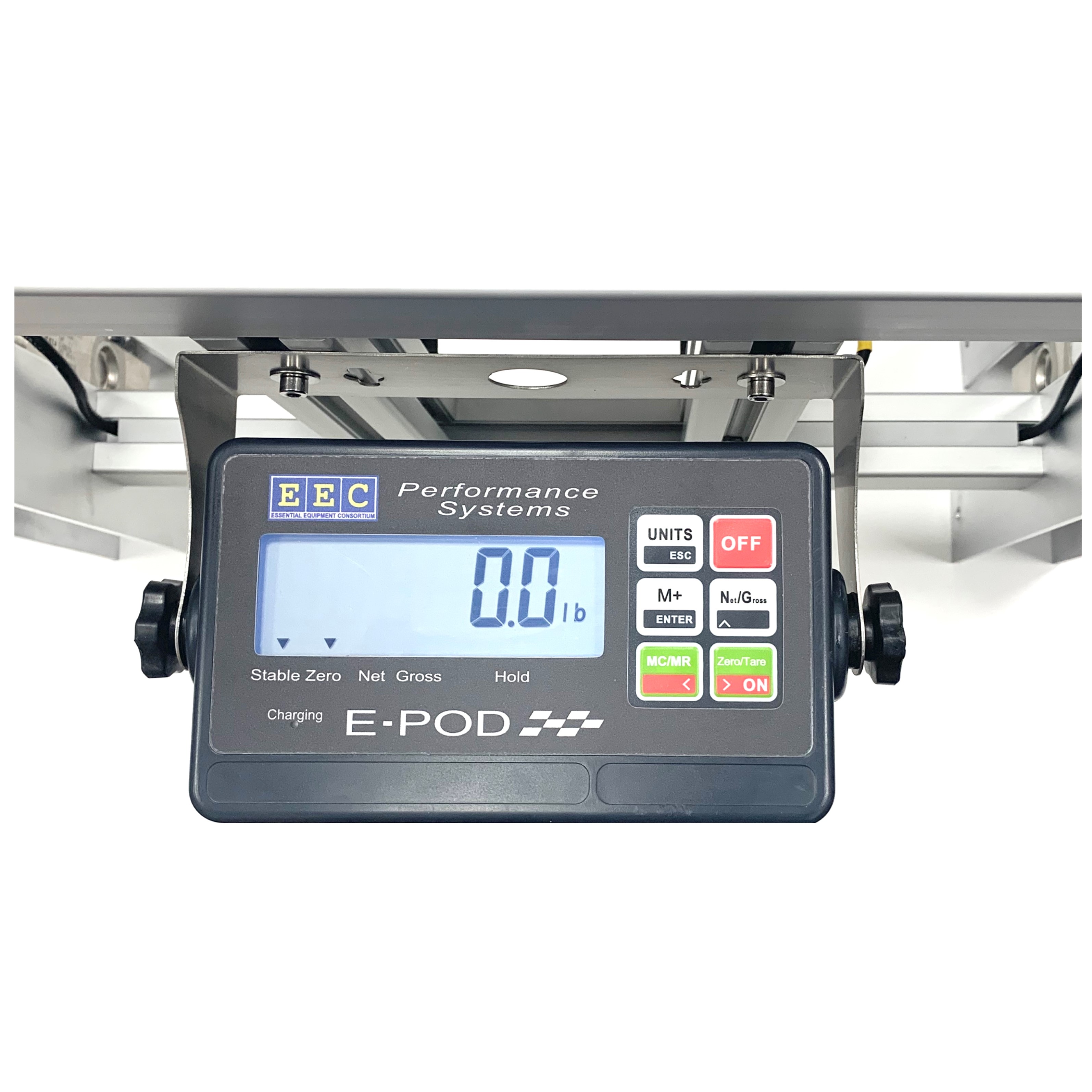

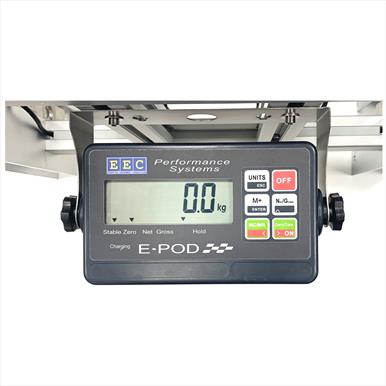

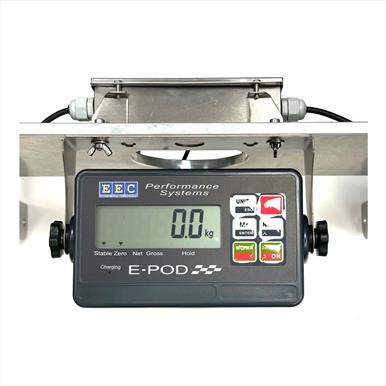

The e-POD digital indicator features a high contrast LCD display with large 22mm digits making it very easy to read in bright sunlight.
It also self illuminates when an active weight is detected making it perfect for night races.
The internal rechargeable battery has a minimum life of 48 hours making the e-POD essential equipment for 24h races!
Units can be changed from kg to lbs at the touch of a button
Accuracy
The e-POD Fuel Rig Scale employs the highest quality weighing components.
Using 4 x high capacity stainless steel loadcells and a precision signal summing board means the side loadings caused by the rigs heavy fuel delivery hose and couplings are not an issue.
Also, there is a simple zero calibration routine available to the operator to ensure that each time the rig is assembled and empty of fuel, true zero can be achieved.
Construction

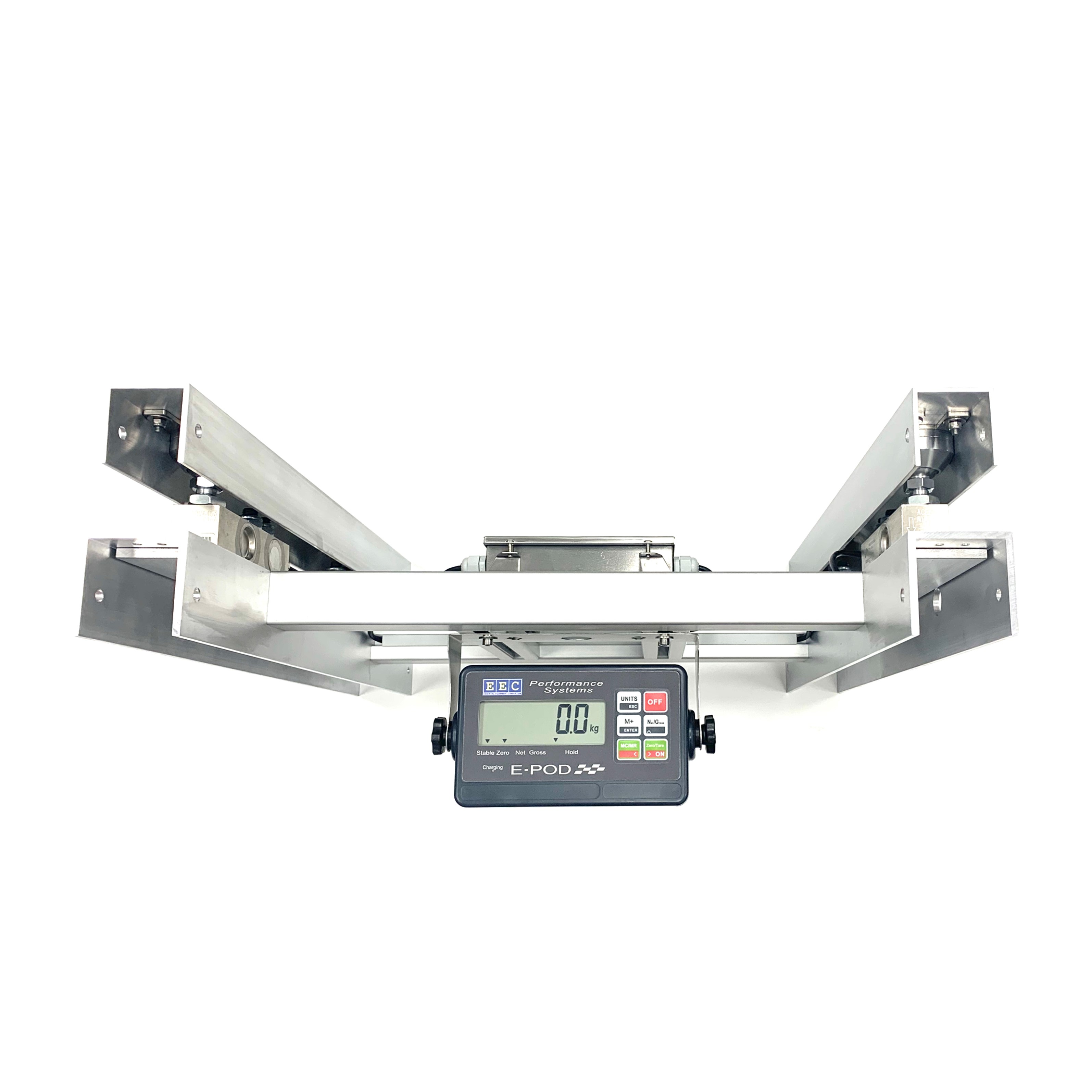

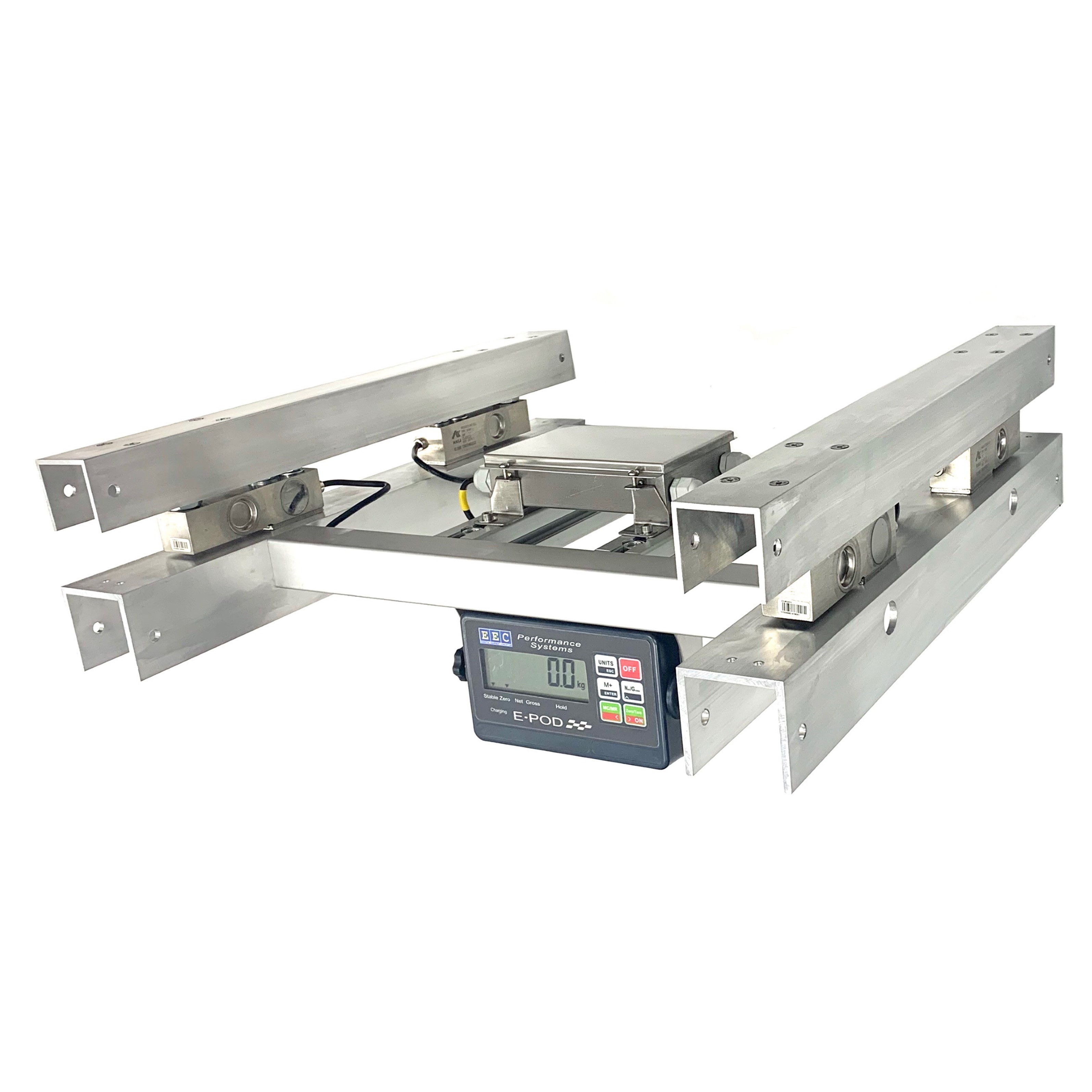

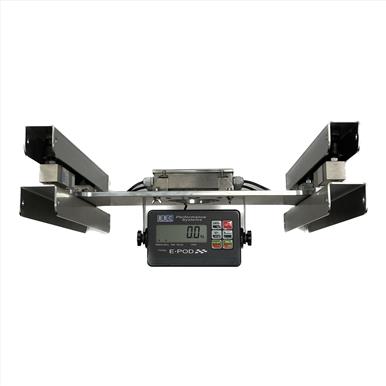

The e-POD Fuel Rig Scale has an aluminium plate to which the loadcells and summing board are mounted. As standard the scale is then fitted with stainless steel upper and lower rails designed to fit most fuel rig tanks on the market including ATL, Caseliner and Premier.
For anyone competing at Le Mans, the lower rails can easily be removed allowing the scale to be clamped to the ACO permanent fuel stands.
We can also supply a centrally mounted ‘spider’ frame version which may require some modification to the base of your tank. Please contact us for more details or for any special requirements you may have.
Specifications
Large 22mm Illuminated LCD Display
Internal Rechargeable Battery
Minimum 48 Hours Battery Life Between Charging
Switchable Weight Units kg/ibs
4 x Precision Balanced IP66 Stainless Steel Loadcells
Stainless Steel Sealed Junction Box
Modular Anodised Aluminium Frame
300kg x 0.1kg Metric Capacity
660lbs x 0.2lb Imperial Capacity
558w x 555d x 235h mm
Shipping Weight 17kg
495mm Spaced Centres to fit most standard rigs with 520mm spaced fixing holes
Options
Remote Indicator Mount
Wireless Indicator System
Custom 'Spider' Central Mounting Frame
