f-POD Max Intelligent Race Fuel Bowser

Price: £POA



EEC Performance Systems consulted with experienced race engineers to provide software control second to none.The 7” full colour touch screen PC, combined with our inspired, step by step graphical instructions, means by using the f-POD Max, refuelling errors are a thing of the past. The f-POD Max can run multiple drivers simultaneously, recording a data history which is available to view instantly on screen and remotely on the Engineers desk and to download via USB for further analysis. The built in Wifi provides a remote support facility for software updates and assistance.

Optional 'Car Pump - Pump Out' where the f-POD Max is equipped to receive fuel pumped out directly from the race cars fuel pump when there is no pump out provision in the cars fuel tank.


The f-POD Max fuel rig, employs the highest quality weighing components. This ensures fuel delivery and reception, in and out of your cars fuel cell, within a repeatable accuracy of 0.05kg, which means you can always be confident with your race fuel calculations.
The f-POD Max employs unique routines to adjust for an empty or full fuel hose, recording precisely actual fuel in and out of your car every time.
​Our unique ATC system ensures the f-POD Max weighs your fuel accurately at any circuit in the world
​without the need for recalibration.


​The f-POD Max is constructed with total safety a priority.
All of the electronic components and battery are housed in a sealed steel cabinet to eliminate any possible spark risk. The pump utilises an explosion proof motor.
The programmable ‘Push to Pump’ button can be configured for all processes, stopping the pump immediately upon release.
Also includes an antistatic bonding lead to keep the car and bowser at the same potential.
Fuel transfer is by high quality hoses . The heavy duty fuel tank is totally sealed in normal conditions featuring an Over/Under Pressure Relief Valve with Vapour Capture.
The substantial aluminium frame sits on the highest quality, low friction, anti-static wheels.
The f-POD Max is UKCA & CE marked and meets all current directives.

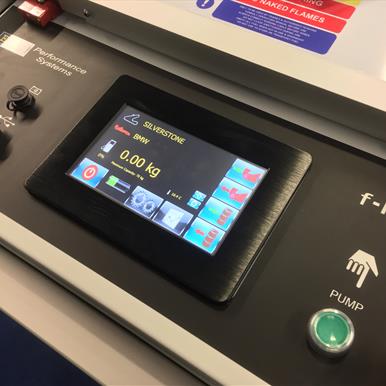

7" Colour Touch Screen Control Panel

Simultaneous Multicar Use

ATC Automatic Track Compensation

Comprehensive Downloadable History

Remote Access From The Engineers Desk

Built In WiFi For Remote Assistance

50 Litre/min Explosion Proof Pump

80kg Capacity Heavy Duty Aluminium Tank (Other Capacities Available)

ATEX Approved Components Where Required

Internal 12VDC Rechargeable Battery

Onboard Intelligent Battery Monitor

High Quality Pull Out/Push Home Hoses

Low Friction Anti-Static Wheels

Heavy Duty Modular Aluminium Housing

Auxiliary Battery Socket

700w x 800d x 1000h mm

Weight Empty 105kg

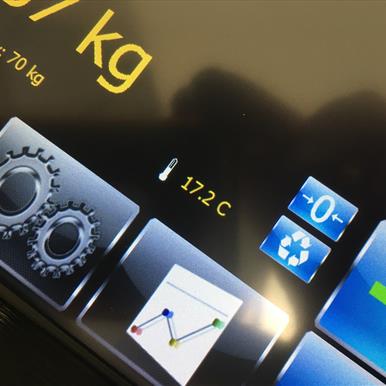

On Board Temperature Display & Logging

Bi-Directional 8 Micron Filters

Anti-Siphon Control

Car Pump - Pump Out

Custom Start Up Screen

Dry Break Connectors

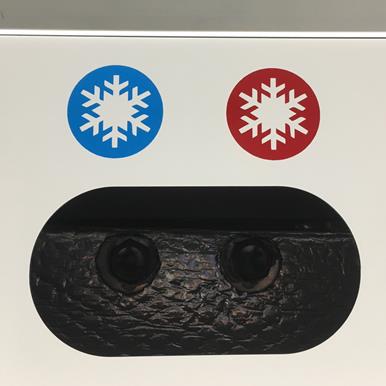

External Chiller Connections

Other Capacities

Custom Panel Colours

Safety Drum Adaptor
